Hkrang shapraw ai hparan ladat

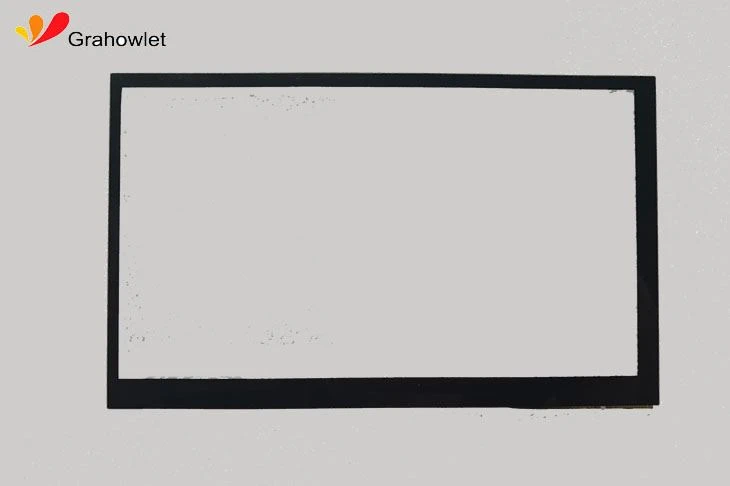

4.3 inch capacitive touch screentsi tsi ai lam a matu, cypress touch controller ic, gloves, hka hte n-gun ja ai tempered glass (sh) PC ni lawm ai madi shadaw ai lam ni hpe npu ntsa kaw nga ai. madung hku nna tsi hpaji, hpaga lam, shimlam, hpaji rawng ai nta arung arai ni hte kaga hpaji ni hta jai lang ai; madi shadaw ai sung htum ai lam hpe gram lajang ai lam, hkrang hte ntsa lam hpe tsi lajang ai lam ni lawm ai--AG AR AF .
Ndai 4.3-inchcapacitive hkra ai screen moduletsi hpaji lam a matu anhte a madang masat masa galaw ai arung arai re. Tsi tsi ai lam hpe certification chyam dinglik ai lam amyu myu hta awng dang wa sai. Shi hta n-gun ja ai anti{2}}jamming galaw ai lam nga ai. 4.3-inch brand yawng a application ni hte 480*272 resolution hte bung mai ai. Anhte hta lata la mai ai TN hte IPS arung arai ni hpe madun da ai screen ni nga ai. Madung nhtoi hte tsaw ai{11}}} ni lahkawng yan hpe mu lu ai. Air- lapran matut mahkai ai lam hte optical-bonding ladat hpe customer ni a bungli masing ni a teng sha ra kadawn ai lam ni hte maren lata la mai ai.
| Model Nambat | HX0431603 |
| Dazik | chyahkyawn |
| Hkrang | 4.3 inch |
| Nbung hpe bungli galaw ai | -20℃- 70 degree |
| N-gun atsam | -30℃- 80 degree |
| Dimension | 105.50(W)x67.20(H)x5.48(D) mm . |
| Mada ai shara | 96.04(W)x54.86(H) mm |
| shamu shamawt ai ginra | 95.04(W)x53.86(H) mm |
| Madi shadaw ai ladat ni | Window/Android/Linux etc. |
| sadi dung ai lam | 1 ning |
| Interface Type; | IIC/USB |
| Hkrang | G+G |
| Controller IC | Cypress |
| Points ni hpe hkra ai | 10 points |
| asan sha nga ai lam | 85% hta grau kaba ai (sh) maren sha re. |
| Surface yak hkak ai lam | 6H hta grau kaba ai (sh) maren sha re. |
| Power Supply Voltage | 2.8V - 3.3V |
| Dawdan lam | 480X272 |
| Interface Type; | RGB(40 PINS) |
| Luminn gu ai lam | 300 cd/m2 |
| Angle hpe yu ai | YAWNG |
Custom Service
 | Galaw Ai LensArung arai ni:Glass,M.M Hkrang:Specialcut galaw na matu madi shadaw ai, drillhole (0.8 mm) Nsam:Silkprint hte LOGO screen print a nsam amyu myu(UV- n-gun rawng ai ink lata la mai ai lam) Dazik:Lata na lam ni: AGC, Corning,CG etc. Thickness:Hkrun lam hkawm ai ni hpe lata la mai ai: 0.55,0.7,1.0,1.0,2,2.0,4.0,4.0,5,6.0,6.0,6.0mm etc. |
 | Sensor Features niArung arai ni:Glass, ngang kang ai, sumla hkrung+film Thickness:0.005mm,0.125mm,0.45mm,0.55mm,0.55mm,0.5.5.7.7.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1. FPC:hkrang hkrang hkrang hpe lata la mai ai IC:Cypress, Ililike, Atmel, Hpungtang hpaji,Goodix,ETI,etc. Interface:IIC,USB,RS232 |
 | Hpaw hpren dan aiHkap la ai ni:BOE, AUO, LNOLux, TianMa, IVO, etc. Pang:TFT{0}}LCD, OLED Optical Boning:OCA,OCR Interface:MCU,RGB,MIPI,LVDS,LVDS,HDMI,VGA,ect. Alu ai lam |
USB interface hpe ra ai rai yang, USB Bridgeboard de IIC hpe jaw mai ai.
Technical Q&A
San: EMC chyam dinglik ai hta ESD a matu gara ladat ni gaw hkum tsup ai jahtum na arung arai ni hpe gara hku ladat ni nga ai kun?
A: yawng hpe hparan na matu gaw, n shamu n shamawt ai wan n-gun hpe ga de lwi shangun ai. Lahta na hpaji jaw ai lam ni nga ai:1), n-gun jaw ai lam hte TV ni hpe Tube: n-gun jaw ai lam VCC, TVs tube hpe ESD makawp maga na matu matut mahkai nna hparan mai ai. TVs tube gaw voltage regulator diode hte grai bung ai. Shi hta rated voltage nga ai. Dai shai hkat ai lam gaw, shi a mahtai lawan ai lam gaw grau lawan ai hte static wan n-gun hta kaja ai hku shapraw lu ai atsam nga ai.2) Shinggan na interface signal line hpe ESD makawp maga ai lam hpe makawp maga ya ai: nang gaw reverse diode hpe myit yu nna, n-gun n-gun (sh) lamu ga;3, LC filtering hpe jat bang ai: IC nkau mi gaw static wan n-gun hpe grau nna hkam sha chye ai. ESD chyam dinglik ai lam ni hpe galaw ai shaloi, reset (sh) si ai lam gaw galoi mung byin chye ai. Hpa majaw nga yang, power supply pin hpe n-gun n jaw ai majaw re. Ndai lam a matu, LC filtering hpe shi a power supply hta jat bang mai ai.4) PCB paving ra ai lam ni: PCB hpe mai byin ai daram n-gun jaw ra ai. Double panel rai yang, maga lahkawng yan hpe lamu ga kaba langai mi hta magri hte htu da ra ai, lamu ga ntsa hka htung ni law law nga ra ai. Dai gaw mali{13}}layer board (sh) dai hta jan ai rai yang, madung daw a makau na plane layer hpe formation langai mi hku nna masat da ra ai.5) grounding ra ai lam ni hpe masat da ra ai: static wan n-gun hpe atsawm sha shapraw lu na matu, kaja ai grounding hpe kam hpa ra ai. Ga shadawn, tsi hpaji hte seng ai electronic ni, monitor zawn re ai tsi mawan ni hpe yu yang, n-gun n rawng ai lam a hpang e maren mara byin mai ai grounding end nga na re. ESD chyam dinglik ai lam ni hpe galaw ai shaloi, ndai grounding end hpe mungkan ga hte mung matut da ai majaw, static wan n-gun hpe lawan ladan shapraw kau lu na lam nga ai.6) PCB layout wiring: Dai chip a decoupling capacitor gaw chip a pin kaw na tsan ai rai yang, decoupling effect mat mat na re. Hkam sha chye ai signal ni a line grai galu ai rai yang, n myit mada ai electromagnetic shingjawng ai lam hpe shalawm na re. Anti{20}}ESD hte seng nna, n-gun ja ai jak ni (sh) signal line (reset zawn re ai) ni hpe PCB a jut kaw na tsan gang hkra galaw ra ai, nbung pru ai lam hpe jak ni hte signal line ni hpe hkrak n-hkap la na matu. PCB jut hta gap (sh) magri mang a galu kaba ai lam langai ngai nga ra ai.
anhte hpe matut mahkai mai ai:hongxiao@grahowlet.com
